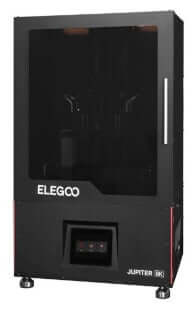

Elegoo Jupiter Resin Printer
Elegoo Jupiter Resin Printer
- 【12.8-inch 6K Monochrome LCD】ELEGOO Jupiter features a 12.8-inch 6K monochrome LCD with a resolution of 5448x3064, allowing you to print models with intricate details and impressive print quality at 51-micron XY resolution, and fast layer curing speed up to 70 mm/h.
- 【Larger Print Volume】With a massive 277.848 x 156.264 x 300 mm build volume and a 286x166mm mask LCD, you can print large models or multiple small parts at once, or anything in between, greatly improving the model print output and efficiency, so it can also meet the printing requirements of commercial users.
- 【All-metal Structure】The printer body and main components are made of high-strength sheet metal, which is resistant to aging and scratches. The Z-axis adopts a ball screw with four sliders for more smooth and quiet movement, effectively increasing Z-axis stability and reducing Z-axis wobble during printing.
- 【Automatic Resin Feeding】Jupiter comes with a unique screw-on resin bottle cap, which allows you to install the resin bottle upside down behind the resin tank that has a resin feeding inlet, and when the resin in the tank is too low, the resin is automatically fed through the resin tank inlet. No more worry about running out of resin mid-print as the automatic resin feeder system will continuously add resin from resin bottle whenever needed during the printing process.
- 【5-inch Capacitive Touchscreen】The 5-inch capacitive touchscreen with a simple UI interface and clear display is highly responsive and straightforward to operate, with no delay or lag, and supports multi-language switching at will.
- 【Better Printing Experience】The plug-in air purifier with built-in activated carbon filter can effectively absorb and filter resin odor during the printing process, giving you a fresh and safe printing experience. The built-in LED strip will automatically light up when you open the door; the beam is uniform and soft, non-UV light won't cure resin, and you can use the printer normally even if the room is poorly lit.
LCD screen: 12.8 inch 6K monochrome LCD
Technology: MSLA 3D Stereo lithography
Light Source: COB(wavelength 405nm)
Operation: 5 inch Touch Screen
Slicer software: chitu box slicer(With one year of free
membership of Chitu box pro slicer )
Connectivity: USB &WLAN
XY Resotion: 0.051mm(5448*3064)
Z Axis Accuracy: 0.00125mm
Layer Thickness: 0.01-0.2mm
Printing Speed: 30-70mm/h
Power Requirements: 100-240V 50/60Hz
Build Volume: 10.939in(L)*6.144in(W)*11.811in(H)
277.848mm(L)*156.06mm(W)*300mm(H)
Carton Weight: 43KG/CTN (1PCS/CTN)
Carton Size: 83*51*37cm
Material: 405nm UV Resin
