3D scanning for quality inspection compares a physical part's measured geometry against its nominal CAD model to identify dimensional deviations, confirm conformance, and generate inspection reports. It replaces manual gauging for complex freeform surfaces, dramatically reduces inspection time on first article and in-process checks, and produces full-surface colour deviation maps rather than isolated point measurements. This guide covers the inspection workflow, the EinScan hardware suited to it, and the Geomagic Control X software that drives the analysis.

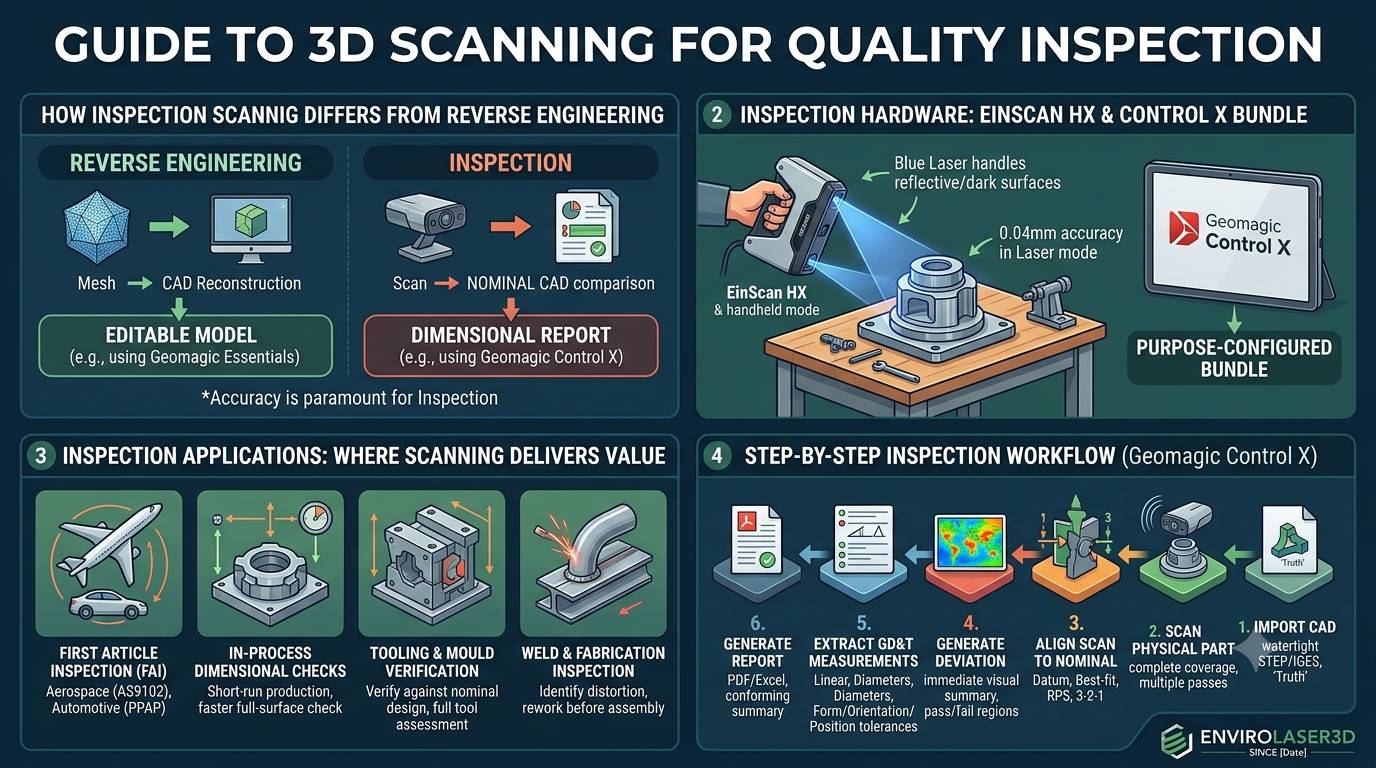

How Inspection Scanning Differs From Reverse Engineering Scanning
This is a distinction that matters when selecting both hardware and software. Reverse engineering uses a scan to create something that does not yet exist in digital form: the goal is to produce a CAD model from a physical object. Inspection uses a scan to verify that something matches a known standard: the physical object is compared against a reference CAD model that already exists.
These different goals place different demands on the workflow.
In reverse engineering, the mesh is the intermediate product on the way to a CAD model. Surface smoothness, mesh resolution, and topology quality determine how much post-processing the mesh needs before it is usable in CAD. In inspection, the mesh is compared directly to the nominal CAD. Accuracy is paramount: every deviation in the scan needs to reflect a real deviation in the part, not noise, calibration error, or scanning artefact.
In reverse engineering, the output is an editable model. In inspection, the output is a dimensional report: pass/fail results, colour deviation maps, GD&T measurements, and a formal first article inspection (FAI) record where required.
The software is also different. Reverse engineering uses CAD reconstruction tools (Solid Edge, Geomagic Essentials, Fusion 360). Inspection uses dedicated metrology software: Geomagic Control X, which is offered as a bundle option on the EinScan HX at EnviroLaser3D.
EnviroLaser3D has been in the technology and printing business for nearly four decades. The adoption of 3D scanning for dimensional inspection has been one of the more significant shifts in how our manufacturing and engineering customers approach quality control, replacing CMM measurements for many freeform inspection tasks and enabling rapid first article inspection that traditional gauging methods cannot match on complex surfaces.
Applications: Where Inspection Scanning Delivers Real Value
First Article Inspection (FAI)
First article inspection is the formal dimensional verification of the first part produced from a new tool, mould, or process. Traditional FAI requires a CMM and manual gauging, which can take a full working day for a complex part. A 3D scan-based FAI captures the full surface in under an hour, generates a colour deviation map of every surface point against the nominal CAD, and extracts the specific dimensional measurements required by the FAI report.
AS9102 (aerospace) and PPAP (automotive) first article requirements are both achievable through 3D scan-based inspection workflows when combined with appropriate measurement uncertainty documentation.
In-Process Dimensional Checks
For short-run production where every part is inspected (common in aerospace, defence, and medical device manufacturing), 3D scanning provides a faster full-surface check than manual gauging. Once the inspection is set up for a part number (alignment method, tolerances, report format), subsequent scans of the same part can be processed and reported with minimal operator input.
Tooling and Mould Verification
Moulds, dies, and fixtures need to be verified against their design geometry before entering production. Scanning a tool provides a complete picture of where the tool surface conforms to nominal and where it deviates: a colour map of the entire tool surface immediately shows whether any region is out of tolerance. This replaces a lengthy process of manual probing with a complete surface assessment.
Weld and Fabrication Inspection
Welded and fabricated structures often have complex geometry that is impossible to measure fully with manual methods. Scanning the finished fabrication and comparing it to the design model identifies distortion, dimensional creep, and areas where rework is required before the assembly moves to the next stage.
As-Built Documentation
For construction, architecture, and heritage applications, as-built scanning captures the finished state of a structure and compares it against the design intent. This is relevant both for quality management (confirming the build matches the drawings) and for record-keeping.
Hardware for Inspection Scanning: EinScan HX with Geomagic Control X
For dimensional inspection workflows, the EinScan HX paired with the Geomagic Control X Essentials software bundle is the purpose-configured option at EnviroLaser3D.
The HX's 0.04mm accuracy in laser mode and 0.05mm minimum point distance meet the requirements of most industrial inspection tasks outside of precision machined components at very tight tolerances (where a CMM remains more appropriate). The blue laser mode's performance on metallic, dark, and reflective surfaces is particularly relevant for inspection, since manufactured parts are frequently in these surface finishes.
The Geomagic Control X Essentials bundle is the inspection-specific configuration: it includes both the Solid Edge Shining 3D Edition for any reverse engineering needs and the Geomagic Control X Essentials software for the dimensional inspection workflow described in this guide.
For less demanding inspection applications where 0.05mm accuracy from the desktop scanner is sufficient, the EinScan SP provides a lower-cost entry point for smaller parts in a controlled bench environment. However, the SP does not include the Geomagic Control X software bundle, which would need to be licensed separately.
See the full EinScan scanner collection for the complete range and current bundle options.
The Inspection Workflow: Step by Step
Step 1: Import the Nominal CAD Model
Before scanning the physical part, import the nominal CAD model into Geomagic Control X. The software accepts STEP, IGES, and native CAD formats from the major platforms. This nominal model is the "truth" against which the scan will be compared.
Check that the CAD model is clean and watertight before import. Defective geometry in the nominal model will cause incorrect deviation results.
Step 2: Scan the Physical Part
Scan the part using the EinScan HX following the calibration and scanning procedure covered in the EinScan setup and workflow tutorial. For inspection scanning specifically:
Select laser mode for metallic or dark surfaces to minimise noise in the scan data. Apply reference markers if the part geometry requires marker alignment for reliable registration. Ensure complete coverage of all surfaces that are subject to dimensional requirements. Capture multiple scan passes of critical surfaces to improve point density.
Process the point cloud in EinScan software (global optimisation, mesh generation). Export the mesh as STL or import directly into Geomagic Control X if the software version supports live connection.
Step 3: Align Scan to Nominal
Alignment is the process of locating the scan geometry relative to the nominal CAD model in the same coordinate frame. Correct alignment is the most critical step in the inspection workflow: an alignment error will show as a systematic dimensional shift across all measurements.
Geomagic Control X offers several alignment methods:
Best-fit alignment minimises the overall deviation between the scan and nominal. Use this for parts without a defined datum scheme when overall conformance is the objective.
RPS (Reference Point System) alignment uses specific defined reference features (datums) to establish the coordinate frame exactly as defined in the GD&T scheme on the drawing. Use RPS alignment when the part has a formal datum structure and measurements need to be reported relative to the datum reference frame.
Datum alignment (3-2-1) uses three planes (primary, secondary, tertiary) to fix the six degrees of freedom of the alignment. Appropriate for prismatic parts with flat datum surfaces.
For formal inspection reports that will be submitted to customers or regulators, use the alignment method specified on the engineering drawing. For internal process monitoring where absolute position is less important than shape conformance, best-fit is adequate.
Step 4: Generate the Deviation Colour Map

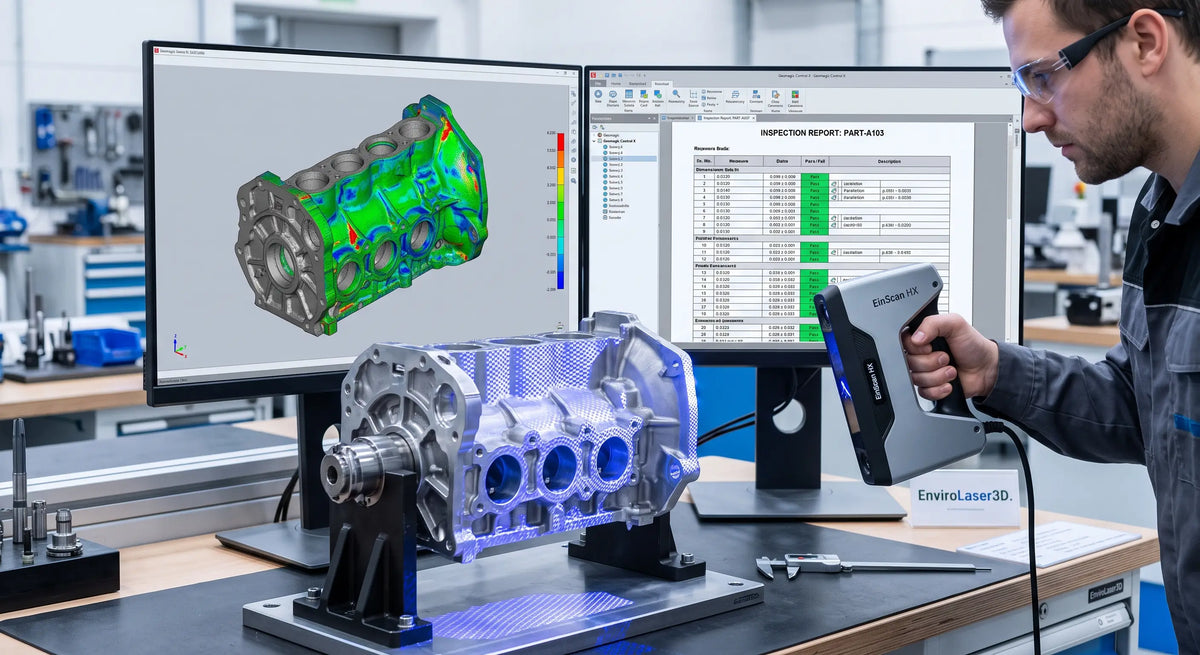

Once the scan is aligned to the nominal CAD, run the 3D comparison to generate a full-surface deviation colour map. This map assigns a colour to every point on the scanned surface based on its distance from the nominal: typically, green indicates conformance within tolerance, red indicates out-of-tolerance positive deviation (excess material), and blue indicates out-of-tolerance negative deviation (missing material or undersize).
The colour map provides an immediate visual summary of where the part is within tolerance and where it deviates. Regions of interest (thick red or blue patches) guide the measurement extraction in the next step.
Step 5: Extract GD&T Measurements
Beyond the colour map, formal inspection requires specific dimensional measurements: linear dimensions, diameters, form tolerances (flatness, circularity, cylindricity), orientation tolerances (parallelism, perpendicularity), and position tolerances.
Geomagic Control X extracts these from the scan data by fitting geometric primitives (planes, cylinders, spheres, cones) to the point cloud data in the relevant regions. The extracted geometry is then measured according to the GD&T standard and compared against the tolerance band on the drawing.
For each measurement, the software reports the nominal value, the measured value, the deviation, and a pass/fail result against the specified tolerance.
Step 6: Generate the Inspection Report
Geomagic Control X produces formatted inspection reports in PDF and other formats containing the colour deviation map, individual measurement results, pass/fail summary, and part identification data. These reports are suitable for FAI documentation, supplier quality records, and customer-facing conformance certificates.
Practical Tips for Reliable Inspection Results
Calibrate before every inspection session. Unlike reverse engineering, where minor accuracy variations are smoothed out by the CAD reconstruction process, inspection accuracy is the direct output. Calibration errors translate directly into incorrect measurement results. For the HX, calibrate at the start of each inspection session and after any temperature change.
Control the environment. Temperature fluctuations cause thermal expansion in the part and the scanner. For high-accuracy inspection work, allow both the part and the scanner to stabilise at room temperature for at least 30 minutes before scanning. Avoid scanning parts that have just come off a machine tool.
Document the alignment method. Record which alignment method was used for each inspection. If results are disputed or re-inspection is required, using a different alignment method will produce different measurement values and the comparison will be meaningless.
Understand measurement uncertainty. 3D scanning-based inspection has an associated measurement uncertainty, as does any measurement method. For the EinScan HX at 0.04mm accuracy, measurements should not be reported to better than 0.01mm resolution in formal documentation. When tolerances are very tight (below 0.05mm), a CMM is a more appropriate measurement tool.
Combine scanning with targeted gauging. For parts where most features can be inspected by scan but one or two critical dimensions require CMM-level certainty, combine scan-based inspection for the surface features with targeted CMM or gauge measurement for the critical features. The two methods are complementary, not exclusive.
Inspection Scanning and 3D Printing Together
The connection between scanning for inspection and 3D printing is direct in prototyping and short-run production environments. Printed parts can be inspected against their nominal CAD files using the same workflow described here, providing quantitative evidence of how well the printer is holding the intended geometry. This is particularly useful for:
Validating 3D printed tooling and fixtures before they are used in production. Inspecting the first printed iteration of a part before committing to a full print run. Documenting the dimensional accuracy of custom printed components that will be integrated into a mechanical assembly.
Explore the EinScan HX and Inspection Bundles
The EinScan HX Geomagic Inspect Bundle, including Geomagic Control X Essentials, is available from EnviroLaser3D's Nepean showroom. Our team can demonstrate the inspection workflow and advise on whether the HX accuracy specification meets the tolerance requirements of your specific application. Visit our about page for showroom contact and opening hours.
For the full comparison of EinScan models and their suitability for reverse engineering versus inspection, see the best 3D scanners for reverse engineering article.
Frequently Asked Questions
What is the difference between 3D inspection scanning and using a CMM?
A CMM (Coordinate Measuring Machine) probes individual points with very high accuracy, typically 0.001mm to 0.005mm. It measures specific features in sequence and requires significant programming time per part. 3D scanning captures the full surface simultaneously at lower point accuracy (typically 0.02mm to 0.1mm) and compares it against the nominal CAD model. Scanning is faster for complex freeform surfaces; CMMs are more appropriate for tight-tolerance prismatic features and formal GD&T on critical dimensions.
What accuracy is achievable with the EinScan HX for inspection?
The EinScan HX achieves 0.04mm accuracy in blue laser mode with a minimum point distance of 0.05mm. This is suitable for inspection tasks on most industrial parts. For very tight tolerances below 0.05mm (precision machined components, gauge blocks, optical surfaces), a CMM or optical comparator is more appropriate.
What is Geomagic Control X?
Geomagic Control X is professional inspection and metrology software from 3D Systems. It imports scan data (point clouds or meshes) and nominal CAD geometry, aligns them using configurable alignment methods, and generates full-surface deviation colour maps and GD&T measurement reports. It is the industry-standard software for 3D scan-based inspection workflows. The Essentials version bundled with the EinScan HX includes the core inspection tools required for most manufacturing inspection applications.
Can I use 3D scanning for AS9102 aerospace first article inspection?
3D scan-based inspection can support AS9102 FAI documentation when the scanner's measurement uncertainty is characterised and documented, the alignment method matches the drawing's datum scheme, and the report format meets the AS9102 requirements. Consult your quality management team or an aerospace quality consultant before implementing scan-based FAI in a regulated supply chain.
How long does a typical scan inspection workflow take?
For a medium-complexity mechanical part (say, a machined bracket with ten to fifteen dimensional requirements), the typical workflow is: scan capture 20 to 40 minutes, import and alignment 10 to 15 minutes, comparison and measurement extraction 15 to 30 minutes, report generation 5 to 10 minutes. Total time of one to two hours compares favourably with manual CMM-based inspection for complex freeform surfaces.
Can 3D scanning detect surface defects as well as dimensional deviations?
3D scanning captures surface geometry and will detect physical deformations, dents, warps, and shape defects that produce measurable dimensional deviation. It does not detect surface finish defects (scratches, porosity, discolouration) that do not affect geometry. For combined geometry and surface finish inspection, scan-based dimensional checking is typically combined with visual inspection or surface texture measurement.
Does the EinScan HX inspection workflow require specific part fixturing?
The part must be stable during scanning to avoid registration errors from movement. For bench inspection, a stable platform or simple fixture is sufficient. For in-situ inspection of installed components, the part itself provides support. Formal datum-based alignment (RPS or 3-2-1) requires reliable access to the datum features, which may require a simple fixture to present these features to the scanner.
What file formats does Geomagic Control X accept?
Geomagic Control X accepts nominal CAD geometry as STEP, IGES, and native formats from SolidWorks, CATIA, NX, and PTC Creo. It accepts scan data as STL, OBJ, and point cloud formats from EinScan and other scanner brands. Reports export as PDF, Excel, and PowerPoint for different documentation needs.
